插頭插座標準量規
產品說明
美標UL498插頭插座量規
| 序號 | 圖號 | 項目名稱 | 數量 | |
| 1 | UL498-figure | 9.1 | Articulate probe with web stop | 1 |
| 2 | UL498-figure | 10.1 | Probe | 1 |
| 3 | UL498-figure | 31.1 | Flat probe | 1 |
| 4 | UL498-figure | 74.1 | Reference plug | 1 |
| 5 | UL498-figure | 100.1 | Improper insertion test blades | 2 |
| 6 | UL498-figure | 111.1 | Test gauge | 2 |
| 7 | UL498-figure | 111.2 | Test blade | 1 |
| 8 | UL498-figure | 124.1 | Receptacle test fixture | 1 |
| 9 | UL498-figure | 124.3 | Push out tool | 1 |
| 10 | UL498-figure | 124.5 | Bridge | 1 |
| 11 | UL498-figure | 125.1 | Test pin A | 1 |
| 12 | UL498-figure | 125.2 | Test pin B | 1 |
| 13 | UL498-figure | 125.3 | 57g ground pin | 1 |
| 14 | UL498-figure | 125.4 | 113g ground pin | 1 |
| 15 | UL498-figure | 136.2 | 14 AWG test pin | 1 |
| 16 | UL498-figure | 139.1 | Small test probe | 1 |
| 17 | UL498-figure | 139.2 | Large test probe | 1 |
| 18 | UL498-figure | 174.2 | Fixture for assembly security test | 1 |
| 19 | UL498-figure | SC13.2 | Oversize grounding pin | 1 |
| 20 | UL498-figure | SC13.1 | Standard grounding pin | 1 |

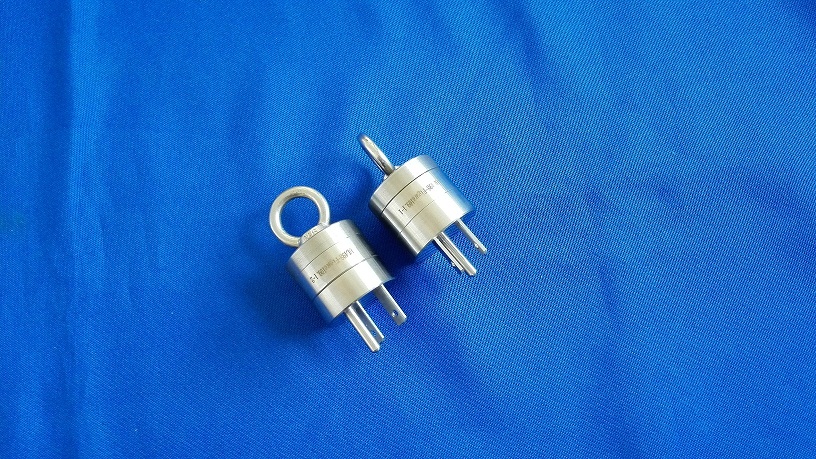

UL498拔出力量規
說明：圖片僅供參考，具體詳情請與我們聯系。
